NEW: SediMeter Model 2 Completely re-designed based on years of experience. Featuring higher resolution, more memory, enhanced options, better communication and user interface, smaller size, and most importantly, a stronger construction for use under waves.
	Specifications Measurement length 350 mm (13.8") Detectors per sensor 36 Wavelength 900 nm - 950 nm NIR Resolution Better than 0.1 mm Accuracy May be calibrated to 0.1 mm Sampling frequency 5 seconds to 24 hours Storage capacity, samples 4096 internally, 250k on 128 MB MMC card Battery type 2 size AA 3.6 V Lithium batteries Battery lifetime Depends on sampling rate and sensors Weight in air Less than 0.5 kg (1 lb.) Weight in sea water Slightly negative Depth rating 45 m (150') Dimensions 700 mm x 51 mm excluding holder (27.6" x 2") Setup Built-in user interface; USB; RS-485 Other features Temperature sensor; 2 optional sensors Manufacturer Lindorm, Inc., USA
	Options Pressure sensor, sea water temperature sensor, RS-485 underwater bulkhead connectors, RS-485 underwater cable with molded connectors.

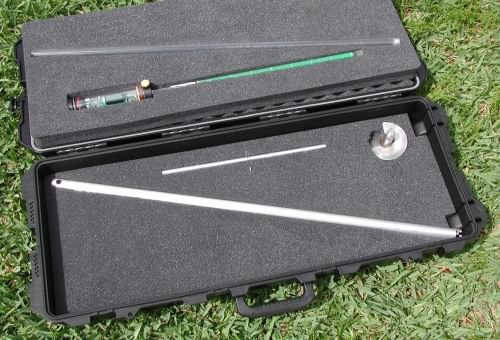

	Ordering Information SediMeter Model 2 Kit Consists of: SediMeter, holder, handle, PC software, batteries, memory card, manual, waterproof storage and transportation case. Dimensions 101 cm x 41 cm x 17 cm (40" x 16" x 7") Weight 10 kg (20 lbs.) Buy a SediMeter Online or Request a quote More information SediMeter information at Lindorm, Inc.
